PRODUCT FEATURES

The 25G/28Gbits Bert is a flexible and low cost production test instrument for Bit error testing of fiber optical communication Chip, Device, module and sub systems.

· Optimized RF layout help achieves very small jitter and fast rise and fall time.

· Low cost which is very suitable for mass production application.

· 3 Tap de-emphysis and 7dB equalization.

· Build in clock reference and clock recovery module with adjustable phase, Slice and loop bandwidth.

· Compact and easy to use

APPLICATIONS
· Testing of optical transceiver modules (QSFP+, CFP, CXP), transponders, line-cards, and subsystems

· Testing of active optical cables, RF cables

· Testing of opto-electronic components and devices (TOSA, ROSA, lasers, etc…)

· Testing of Gb/s ICs, PCBs, electronic modules, subsystems, and systems

· Serial bus and high-speed backplanes

· Source for 100Gb/s test platforms

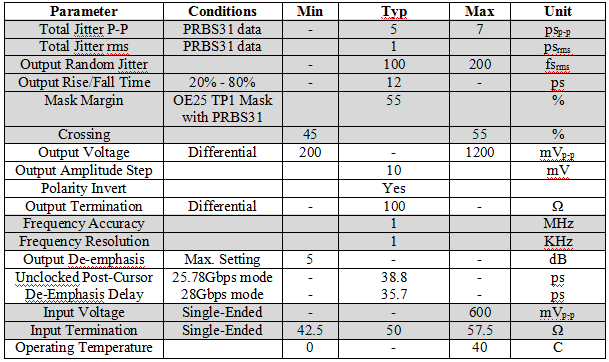

Key Parameters:
